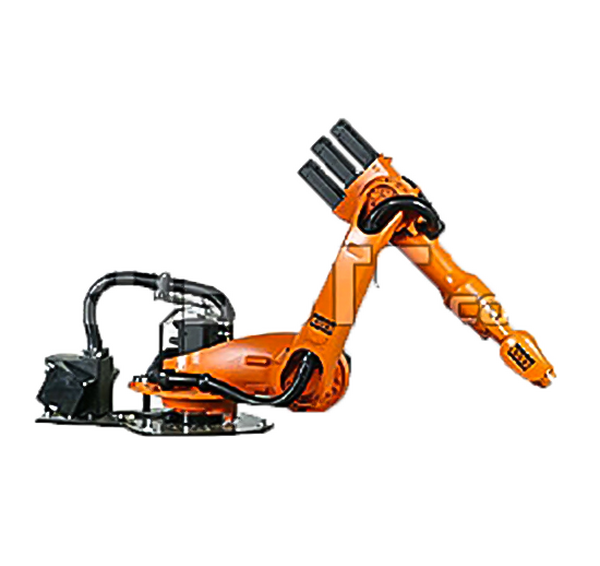

KUKA KR 6 KS
Payload
6 kg
Reach
1801 mm
Axes
6
Applications
Arc Welding Robots, Assembly Robots, Foundry Robots, Machine Loading Robots, Machine Tending Robots, Material Handling Robots, Order Picking Robots, Packaging Robots, Palletizing Robots, Welding Automation Robots
Request a Quote
Contact us:
Payload
6 kg
Reach
1801 mm
Axes
6
Applications
Arc Welding Robots, Assembly Robots, Foundry Robots, Machine Loading Robots, Machine Tending Robots, Material Handling Robots, Order Picking Robots, Packaging Robots, Palletizing Robots, Welding Automation Robots
The short stature and deeper1801mm reach of this shelf-mountedKUKAKR6KSKRC2model make it an excellent choice for diverse applications.
This version of theKR6能够执行各种不同的应用ions, including handling, arc welding, assembly, packaging, order picking, and cutting, among others. TheKR6KSis a perfect choice for reaching into tight spaces, especially during welding applications.
Payload
6 kg
Reach
1801 mm
Axes
6
Repeatability
0.1 mm
Mass
240 kg
Structure
Articulated
Mounting
Floor
J1
132 °/s (2.3 rad/s)
J2
156 °/s (2.72 rad/s)
J3
156 °/s (2.72 rad/s)
J4
343 °/s (5.99 rad/s)
J5
363 °/s (6.34 rad/s)
J6
659 °/s (11.5 rad/s)
J1
±114°
J2
+80° - 110°
J3
+154° - 130°
J4
±350°
J5
±130°
J6
±350°
