Motoman Legacy Robot Series

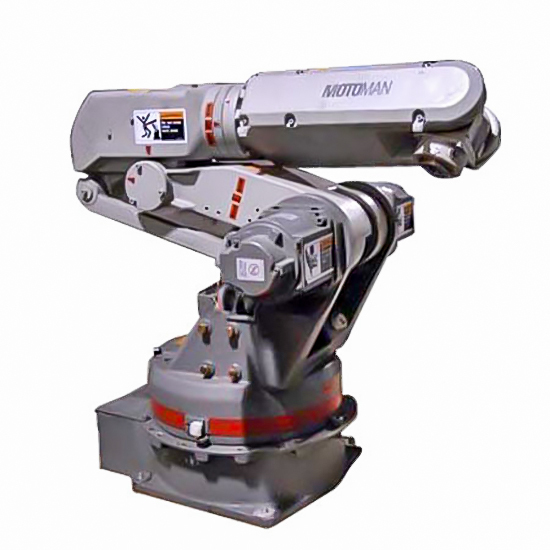

Motoman K3
The compact, six-axis, used Motoman K3 is a tabletop robot with a small footprint and fast cycle rate. With the flexibility to be wall-, floor-, or ceiling-mounted, the used K3 is ideal for arc welding, assembly, and material handling applications. The used Motoman K 3-CR is a cleanroom version that has class 1 certification.
The used K3 can use either the ERC or MRC controller.
All used robots purchased from RobotWorx include the RobotWorx Value Package.
robots-for-more-information
Robot Specifications
- Axes:
- 6
- Payload:
- 3kg
- H-Reach:
- 859mm
- Repeatability:
- ±0.1毫米
- Robot Mass:
- 52kg
- Structure:
- Articulated
- Mounting:
- Floor
Robot Motion Speed
- J1
- 150 °/s (2.62 rad/s)
- J2
- 200 °/s (3.49 rad/s)
- J3
- 200 °/s (3.49 rad/s)
- J4
- 280 °/s (4.89 rad/s)
- J5
- 280 °/s (4.89 rad/s)
- J6
- 420 °/s (7.33 rad/s)
Robot Motion Range
- J1
- °±340
- J2
- ±240°
- J3
- ±260°
- J4
- ±360°
- J5
- ±270°
- J6
- ±400°
